AUDIS-01D/2-16 – Audio Monitor

Add to quote list
Category:

Description

Desktop Audio Monitor

  • 2 BNC inputs on the rear panel
  • Input for up to 16 channels via optional adapter cable
  • Noise and Pitch mode
  • Built-in speaker and headphone jack

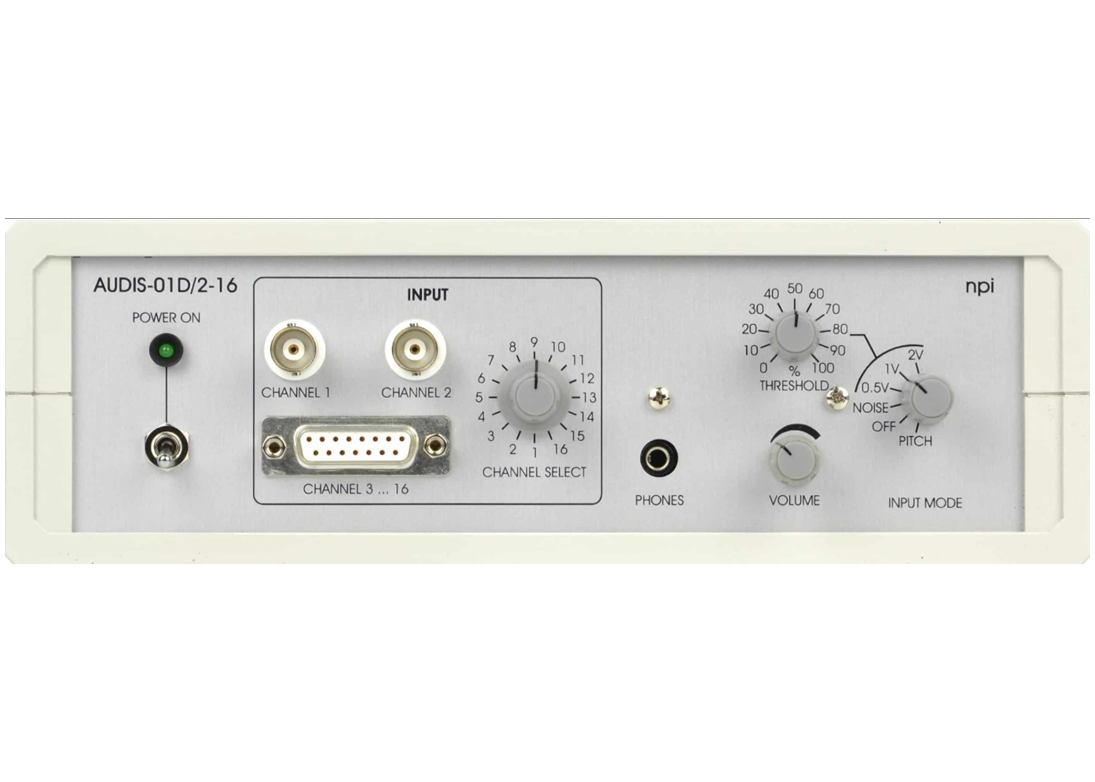

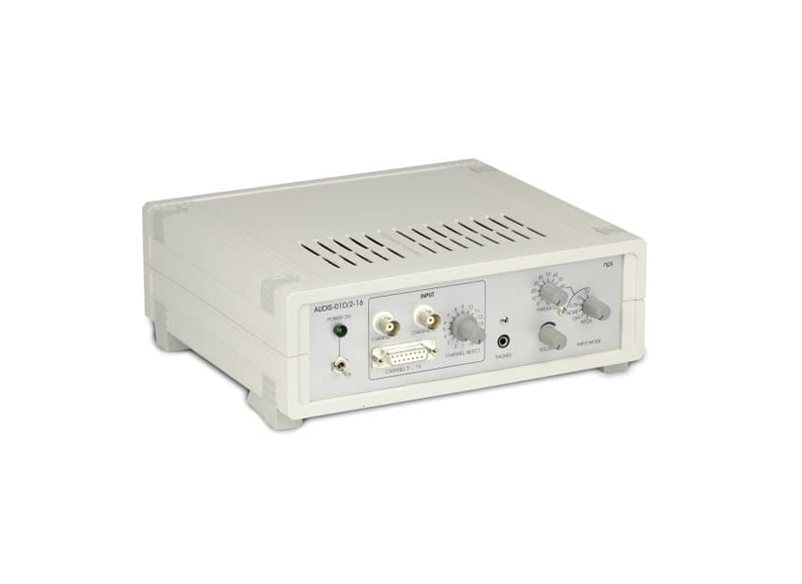

The AUDIS-01D/2-16 is a digital acoustic monitor in a small desktop cabinet with a built-in loudspeaker and two audio modes. In PITCH mode the voltage input signal is converted to a tone, and in NOISE mode the signal is highpass filtered to monitor the noise. A THRESHOLD function (in NOISE mode) can be used for masking the noise of the baseline.

Last Updated on June 9, 2026

Features

The device features two operation modes for flexible signal monitoring in electrophysiology applications. In PITCH mode, the input signal is converted into an audible tone, allowing real-time auditory feedback of signal activity. In NOISE mode, the input signal is high-pass filtered to enable monitoring of background noise levels and signal fluctuations.

A built-in THRESHOLD function allows precise control of the NOISE mode activation level, with three selectable ranges (0.5 V, 1 V, or 2 V maximum). Fine adjustment is also available as a percentage of the selected maximum value for improved accuracy and usability.

The system supports up to 16 input channels, with 2 channels available via BNC connectors and additional channels accessible through a breakout cable. For audio output, the unit includes a built-in speaker with adjustable volume control, as well as a 3.5 mm stereo headphone jack for external monitoring.

Last Updated on June 9, 2026

Specifications

Parameter Details
Description Compact digital acoustic monitor designed for flexible signal-to-sound conversion and real-time monitoring in electrophysiology applications
Audio Mode PITCH / NOISE / THRESHOLD, selected by rotary switch with OFF position
Threshold RANGE and FINE control, range: 0.5 V, 1 V or 2 V max
Input BNC connector, 100 kΩ impedance, high-pass filtered in NOISE mode
Voltage Range ±10 V
Volume Control One-turn potentiometer for speaker volume adjustment
Headphones Output 3.5 mm stereo jack connector, 1 kΩ, 1 V max
Dimensions (Front Panel) 12 HP (60.6 mm) × 3U (128.5 mm), depth 175 mm
Overall Dimensions (W × D × H) 225 mm × 210 mm × 85 mm
Power Requirements 15–18 V AC, minimum 1 A (external AC power supply included)

Last Updated on June 9, 2026

Downloads

Audis-01D_2-16-manual

Last Updated on June 9, 2026

Related products

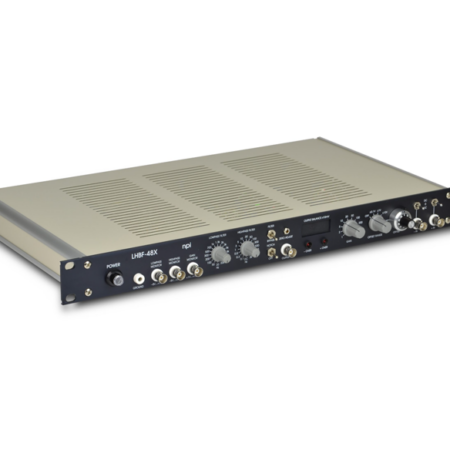

OctaFlow III™ LHBF – Bessel Filter
