Overview

The world’s smallest integrated patch clamp amplifier and data acquisition system for whole-cell and single-channel recordings

A very low noise one channel amplifier enabling high bandwidth acquisitions for voltage-clamp measurements.

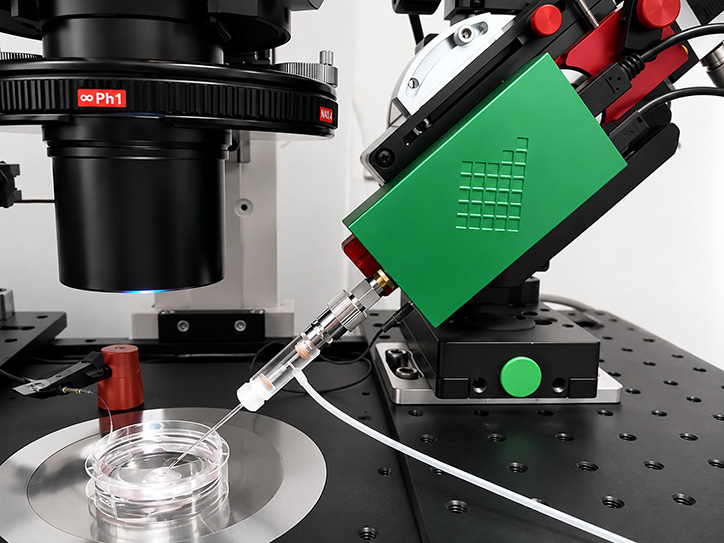

The miniaturized ePatch amplifier integrates in a small headstage the low-noise amplifier, the pulse generator and the digitizer into only 42 x 18 x 78 mm and it is connected directly to the USB port of a laptop without the need of any other external bulky digitizer and control unit.

Last Updated on October 10, 2024

Details

EZ Patch – the new ePatch software interface

EZ Patch software is the new patch-clamp electrophysiology software developed and released by Elements for easy control of the ePatch amplifier. EZ Patch allows:

Customizable user-friendly Windows-format interface
Real-time display of voltage and current digitized data
Parametric voltage protocols editor
Automatic or manual control of compensation settings
Membrane parameters estimation to keep track of cell health
Real-time data analysis (C-fast – estimation, noise, I/V graph, current histogram, etc.)
Digital LabBook
Data output saving formats: .abf
Available for Windows, coming soon for Mac OS

Last Updated on October 10, 2024

Specifications

Open input (RMS) noise: 115 fA rms @ 1kHz – 460 fA rms @ 10 kHz – 3.6 pA rms @ 100 kHz
Current ranges: ±200pA (Gain 2.25GΩ), ±2nA (Gain 225MΩ), ±20nA (Gain 22.5MΩ), ±200nA (Gain 2.25MΩ)
Parametric voltage protocols for pulse generator in the range of ± 500 mV
Available bandwidth between 62,5 Hz to 100 KHz
Max sampling rate: 200 ksps
C-fast – C-slow – R-series
C fast compensation range: 0-11 pF
R series compensation range: 0 -100 MΩ
Auto electrodes voltage offset fine compensation
Data output format .abf
Zap pulse
USB powered
Dovetail or rod bar mounting
Size & Weight: 42 x 18 x 78 mm, 200 g

Last Updated on October 10, 2024

Downloads

ePatch Literature:

ePatch Literature

Last Updated on October 10, 2024

References

Last Updated on October 10, 2024

Ordering

Ordering
ePatch	Low noise 1 channel integrated patch clamp amplifier and data aquisition system for whole-cell and single-channel recordings with EZPatch software
