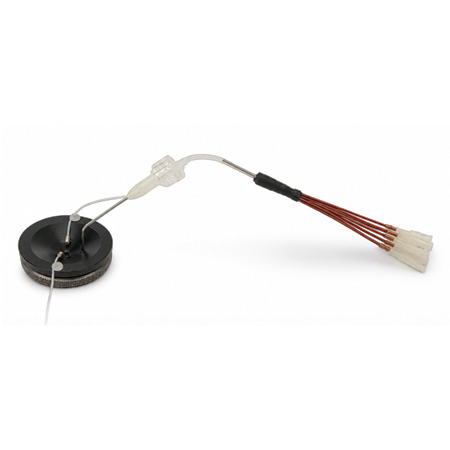

Oocyte Perfusion Chamber

  • Model: MS-OPC
Add to quote list
This product is already in quote request list
Browse the list
Category: Imaging & Recording Chambers Tags: electrtophysiology temperature controllers, imaging chambers, live cell imaging, live cell life support, live cell recording, low noise temperature controllers, microcubator, microscope incubation chamber, microscope stage cooling devices, microscope stage heating devices, recording chambers, solution flow cooling, solution flow heating
  • Overview
  • Details
  • Downloads
  • Ordering

Overview

The MS-OPC is a unique chamber that uses a funnel effect to channel perfusion solutions around an Oocyte in a very efficient manor. The Oocyte is placed at the bottom of the funnel, on the glass surface of the cover slip that forms the bottom of the chamber. Typically the Oocyte will adhere to the glass to some extent. The position of the Oocyte at the bottom of the funnel insures that it will be well bathed by the perfusion solution that is put into the chamber through the metal canula that is provided (19gage). Typically the canula is the infusion point, but it can be used in reverse, if a device such as an ALA Levelock™ is used to manage the solution outflow. If your suction line is simply tied to a vacuum source, then the canula should be used for infusion, and your suction line placed on the side of the funnel. (If you require adjustable holders for tubing with a magnetic base that can secure the chamber and the tools, please check out MS Tools from ALA scientific as well)
The funnel shape of the chamber helps to keep fluid levels constant by allowing an ever increasing space as the fluid rises. Also, the shape gives solutions space to spread out and dilute after application on the Oocyte when the next solution is infused at the bottom. In addition, the small volume created by the chamber at the bottom insures fast perfusion time, and the shape of the walls will give maximum axis for two recording electrodes.

Last Updated on January 27, 2022

Details

The Oocyte Perfusion Chamber (MS-OPC) uses the securing ring design like the other MS Chambers from ALA. The MS-OPC is made from Delrin®, an opaque polycarbonate plastic that is somewhat more hydrophobic than Lexan®and more optically friendly.This chamber has a funnel shaped interior where the oocyte sits snugly so that two electrode voltage clamp recording can be carried out. It also has a perfusion port where the perfusate bathes the oocyte from the bottom of the funnel upwards. This ensures complete oocyte bathing of the perfusate. The chamber emulates 35mm Petri dishes in size and uses 25mm round #1 coverglass.

Last Updated on January 27, 2022

Downloads

Manual Oocyte Perfusion Chamber Manual

Manual Oocyte Perfusion Chamber Literature

Last Updated on January 27, 2022

Ordering

Part#
Description
ALA MS-OPC
Oocyte Perfusion Chamber
ALA MS-OPCP
Oocyte Perfusion Chamber with 2 pellets attached

Last Updated on January 27, 2022
