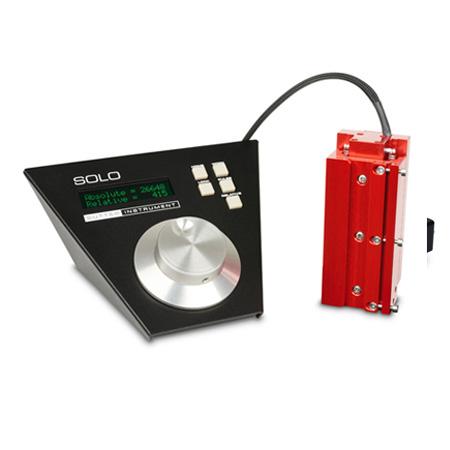

Single Axis Manipulator and Controller

Solo

Add to quote list
This product is already in quote request list
Browse the list
Category: Manipulators Tags: adapters, hydraullic micromanipulator, magnetic stands, manual micromanipulator, mechanical micromanipulator, micromanipulation, micromanipulator, microscope mounting, microscope stages, microscope translators, motorized micromanipulator, Narishige, Sutter
  • Overview
  • Details
  • Specifications
  • Ordering

Overview

The SOLO is an extremely easy to operate single axis controller capable of running any single axis from Sutter’s line of stepper motor manipulators. The compact design of the SOLO controller requires minimal bench space and provides quiet, fan-free operation.

Last Updated on February 3, 2021

Details

The SOLO controller features user defined Home and Work positions. Press and hold the Work button to quickly store a work position; press Work again and the manipulator will return to the same location. Home sends the manipulator to an initial location or any user defined position. Position coordinates, in relative or absolute values, are displayed directly on the ROE. A Pulse button activates a discrete 3 micron movement of the axis.

Speed of movement is determined by how fast the ROE knob is turned. We have added three distinct speeds to give the user extreme control over movement. The combination of three speeds and the knob speed control makes the SOLO an ideal, ultra-reliable controller for sub-micron movement.

Single axes are available in lengths of 25 mm or 50 mm. The SOLO is suitable for in vivo experiments that require only one motorized axis. Additionally, this single axis controller can be used as a sub-micron focusing system as seen in the Sutter SOM and BOB microscopes or used to add a fourth axis to your existing Sutter manipulator to create a true four-axis motorized in vivo and in vitro manipulator (such as the QUAD).

USB connectivity and open source commands, along with built-in features such as Work & Home positions, and Pulse mode, make this single axis controller the ideal device for the do-it-yourself scientist.

FEATURES

  • Control any single axis from Sutter stepper motor manipulator collection
  • 25 mm or 50 mm length of travel
  • Absolute and Relative modes
  • User defined Work and Home positions in Absolute mode
  • Pulse mode
  • USB connectivity

APPLICATIONS

  • Can be used with a single axis micromanipulator to design a focus drive for your researcher-made microscope
  • Can be used to add a 4th axis to a 3-axis Sutter manipulator
  • Ideal for in vivo experiments

Last Updated on February 3, 2021

Specifications

Control Box
5.5 in x 5.1 in x 3.2 in | 14 cm x 13 cm x 8 cm

Weight – Controller
1.2 lbs | .53 kg

Electrical
115/230 Volts
50/60 Hertz power line

Last Updated on February 3, 2021

Ordering

SOLO-25 SOLO controller and single axis with 25 mm travel
SOLO-50 SOLO controller and single axis with 50 mm travel
SO-ST Manipulator adapter for stereotaxic (Stoelting, Kopf)



Last Updated on February 3, 2021

Quote List

No products in the list

Related products

  • M-3333

    Show Details

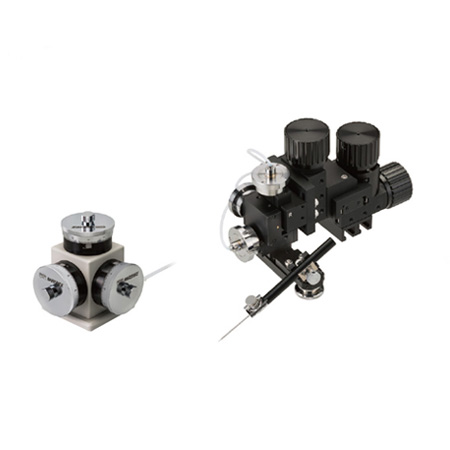

  • MHW-3

    Show Details
  • MO-10

    Show Details
  • NMN-21

    Show Details

Subscribe to our Newsletter


About Us

ALA Scientific Instruments, Inc. began as Adams and List Associates Ltd. in 1986.

Recent News

  • ALA is attending Society for NeuroScience
  • ALA is attending Biophysical Society Meeting
  • FENS FORUM 2024
  • ALA is attending Biophysical Society Meeting
  • ALA is attending Society for Neuroscience

Search Site

Copyright © 2025 - Ala Scientific Instruments, Inc.
  • Facebook
  • Twitter
  • Instagram
  • LinkedIn
  • Rss

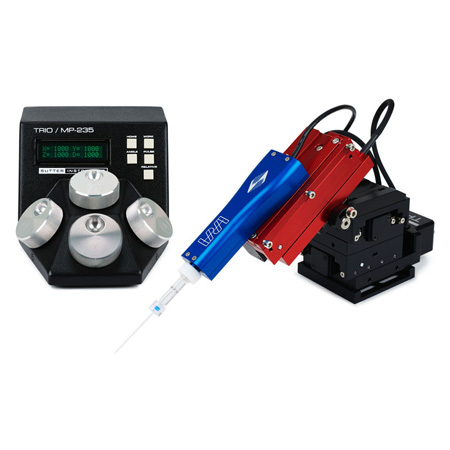

ePatch 3 Axis / 0 to 90 Diagonal Micromanipulator System
