Single Electrode Clamp

SEC-05X

Add to quote list
This product is already in quote request list
Browse the list
Category: Intracellular Tags: amplifiers, bridge recording, electrophysiology rig, extracellular recording, in vitro recording, in vivo recording, intracellular recording, oocyte recording, patch clamp, patch clamp rig, single electrode voltage clamp, two elecrode voltage clamp, xenopus recording
  • Overview
  • Features
  • Specifications
  • Downloads
  • References
  • Ordering

Overview

SEC series systems are versatile intracellular recording systems. SEC systems are the fastest and most accurate single-electrode current – and voltage – clamp systems available.
These amplifiers are suitable for recordings with high resistance microelectrodes, for tight-seal perforated patch, or whole-cell recording techniques. They also allow intracellular recordings during in vivo voltammetry experiments. Currently, SEC amplifiers are used in vertebrate (rat, mouse, cat, fish etc.) and invertebrate (leech, crab, snail, insect etc.) neurons, muscle cells, other excitable tissue and plant cells.
A significant improvement over other time-sharing amplifiers is that the SEC systems fully compensate the recording microelectrode. This allows single electrode recordings with the same accuracy and speed of response as with the standard two electrode voltage clamp approach.

All systems include four (optionally eight) modes of operation, many automatic functions, protection circuits, versatile I/O signal conditioning units, and digitally controlled operation. All of these features make these amplifiers the ideal research instruments for all electrophysiological investigations using intracellular microelectrodes or suction electrodes (patch pipettes).

The SEC is also available as module for the EPMS-07 System.

  • Save money with this simpler version of the SEC-10LX
  • Avoid series resistance induced errors
  • Same performance and speed as the SEC-10LX
  • Gating unit available as accessory
  • Modular version available: SEC-03M

Last Updated on October 10, 2024

Features

  • Four modes of operation by default
    • Bridge mode (BR)
    • Current Clamp mode (CC)
    • Voltage Clamp mode (VC)
    • Electrode resistance test mode (REL)
  • Three additional modes optional
    • Voltage Clamp controlled Current Clamp mode (VCcCC)
      Allows Current Clamp experiments at controlled resting potentials
    • Dynamic Hybrid Clamp mode (DHC)
      Allows precise measurement of conductances after action potentials
    • Linear (unswitched) mode (LIN), optional with series resistance compensation
      x1: Allows low-noise recordings of small currents, and approaching the cell and seal formation in VC mode
      x10: Provides 10 times more current in CC and 10 times more voltage in VC mode for non-invasive (juxtacellular) filling of cells
  • Complete compensation of electrode artifacts allowing high (>30 kHz) switching frequencies
  • No series resistance errors
  • Perfect for recording also from coupled cells with two synchronized SEC amplifiers (SEC-DUAL)
  • Recordings with sharp microelectrodes or patch pipettes
  • True current clamp in switched and bridge mode
  • Fast switched voltage clamp with proportional-integral (PI) controller
  • Versatile and configurable penetration unit
  • BESSEL filters for current and voltage (16 corner frequencies)
  • Monitors for filters and current output sensitivity
  • Optional Gating Unit GIA-05X

Also available as module for the EPMS-07 System.

Last Updated on October 10, 2024

Specifications

MODES of OPERATION R : Electrode resistance test EL
BR: Bridge mode
CC: Current Clamp mode
VC: Voltage Clamp Mode
DHC: Dynamic Hybrid Clamp mode (option)
VCcCC: Voltage Clamp controlled
Current Clamp mode (option)
LIN: Linear mode (x1 and x10)
LIN: Linear mode with series resistance compensation
Mode selection:
rotary switch with six positions (SEC 05X)
four pushbuttons (SEC 10LX)
rotary switch with five positions (SEC 03)
Linear mode with switch
HEADSTAGES Standard headstage(SH), low-noise Headstages(HSP)
operation voltage: ±15 V
size: 100x40x25mm, HSP: 77x37x20mm
headstage enclosure connected to ground
electrode connector: gold plated SMB (SH)
BNC connector (HSP), both with driven shield
ground: 2.6 mm connector or headstage enclosure
13 input resistance: >10 Ohms
current range (continuous mode):
150 nA (SH); 15 nA into 100 MOhms (HSP)
CC control: Coarse control for cap. comp.
holding bar (SH): diameter 8 mm, length 10 cm
mounting plate (HSP headstage) 60×50 mm
EXT headstage: 1 mm connectors,
differential high impedance input, gain of ten
cap. comp. for the non-inverting input
high pass filter with six corner frequencies
(1; 3; 10; 30; 100; 300 Hz)
BANDWIDTH AND SPEED OF RESPONSE Full power bandwidth (Re=0): >100 kHz
rise time (10-90%, Re = 100 MOhms) <30 μs
rise time (10-90%, Re = 5 MOhms) <8 μs
Electrode artifact decay (switched modes
10 nA signal) <1 μs (Re = 5 MOhms)
<1.5 μs (Re = 100 MOhms)
cap. comp. tuned with no overshoot
ELECTRODE RESISTANCE TEST 10 mV/MOhm, obtained by application of square
current pulses ±1 nA, display XXX MOhm
OSCILLATION SHUT-OFF Turns off current injection and cap. comp.
indicated by red/green LED,
disabled / off / reset switch
threshold set with linear control (0-1200 mV).
SEC-03: no oscillation shut-off
CELL PENETRATION Overcompensation of cap. comp.,
timer controlled,with remote switch
connected via BNC connector.
Application of DC pulses, variable frequency and
amplitude, timer controlled, with remote switch
connected via BNC connector (SEC-10).
Application of max. continuous DC current, BUZZ,
with push button or remote switch connected via
BNC connector (SEC-05).
No cell penetration unit (SEC-03)
(modular penetration unit available)
SWITCHED MODES PARAMETERS Switching frequency: linear control
1.5 to >50 kHz; display: XX.XX kHz.
duty cycles: 1/2, 1/4, 1/8
selected by toggle switch.
SEC-03: fixed 1/4 duty cycleCURRENT RANGE vs. DUTY CYCLE
1/8 – 15 nA; 1/4 – 30 nA, 1/2 – 60 nA
(standard 15 V headstage)
1/8 – 1.5 nA; 1/4 – 3 nA, 1/2 – 6 nA
(low noise headstage)
SWITCHED MODE OUTPUTS Electrode potential: max. ±15 V,
output impedance 250 Ohms.
switching frequency: TTL (5 V),
output impedance 250 Ohms.
CURRENT OUTPUT Sensitivity: 0.1…10 V/nA in 1-2-5 steps
with lowpass Bessel filter
output impedance 250 Ohms
sensitivity monitor: 1…7 V, 1V/switch position
output impedance 250 Ohms
current display: X.XX nA
SEC-03: fix 0.1V/nA
POTENTIAL OUPUT Sensitivity x10 mV, with lowpass Bessel filter
output impedance 250 Ohms
potential display: XXX mV
AUDIO MONITOR Pitch correlated with potential signal
OUTPUT FILTERS SEC-05: four-pole lowpass Bessel filter with 16 corner frequencies, 20 Hz – 20 kHz
frequency monitor: -8…+7 V, 1 V/switch position
output impedance 250 Ohms.
SEC-10: four-pole lowpass Bessel filter with 16 corner frequencies, 20 Hz – 20 kHz
frequency monitor: -8…+7 V, 1 V/switch position
output impedance 250 Ohms.
SEC-03: unfiltered or 5 kHz, internally adjustable
CURRENT CLAMP Inputs: 1 nA/V, 0.1 nA/V with ON/OFF switches
SEC-03: 1 nA/V
input resistance >100 kOhms
hold: X.XX nA ten-turn digital control, -/0/+ switch
max. 10 nA.
Gated input (SEC-10 systems only): X.XX nA
with +/0/- switch, TTL input (HI >2.5 V, input
resistance 10 kOhm).
BRIDGE balance: XXX MOhms with
ten-turn digital control.
noise (BRIDGE MODE): 400μV pp / pA pp
with 100 MOhms resistance at 10 kHz bandwidth
(internal four-pole Bessel filters)
VOLTAGE CLAMP
Inputs: 10 mV or 40 mV
SEC-03: 10mV
input resistance >100 kOhms
hold: XXX mV, ten-turn digital control
with +/0/- switch, max. 1000 mV
rise time limit: 0-2 ms (SEC-05 / SEC-10 only)
gain: 100 nA/V – 10 μA/V ten-turn linear control
noise (filters set to 10 kHz, SEC-05 / SEC-10)
Potential output: <400 μV pp
current output: <400 pA pp
SPEED of RESPONSE (VC Mode) 1 % settling time: <80 μs for 10 mV step
<800 μs for 50 mV step applied to cell model
(Re= 100 MOhms, Rm= 50 MOhms, Cm= 470 pF
duty cycle = 1/4, switching frequency = 30 kHz
standard headstage)
<400 μs with 1/2 duty cycle.
DIMENSIONS SEC-05 / SEC-10 systems:
19″ (483 mm) wide
14″ (355 mm) deep
5.25″ (132.5 mm) high,
SEC-03 (two slots):
24 HP (121 mm) x 3U (128 mm) x 7 inch (175 mm)

Last Updated on October 10, 2024

Downloads

Manuals:
SEC-05X Manual

Brochure:
SEC Brochure

intracellular amplifier

Last Updated on October 10, 2024

References

Long-term actions of interleukin-1β on K+, Na+ and Ca2+ channel currents in small, IB4-positive dorsal root ganglion neurons; possible relevance to the etiology of neuropathic pain

Ketamine inhibits synaptic transmission and nicotinic acetylcholine receptor-mediated responses in rat intracardiac ganglia in situ

Extraretinal Spike Normalization in Retinal Ganglion Cell Axons

Anqi Shi, Alexandra L Petrache, Jiachen Shi, Afia B Ali, Preserved Calretinin Interneurons in an App Model of Alzheimer’s Disease Disrupt Hippocampal Inhibition via Upregulated P2Y1 Purinoreceptors, Cerebral Cortex, Volume 30, Issue 3, March 2020, Pages 1272–1290, https://doi.org/10.1093/cercor/bhz165

A Direct Comparison of Different Measures for the Strength of Electrical Synapses

Last Updated on October 10, 2024

Ordering

Part No. Description
SEC-10LX SEC-10LX System
SEC-05X SEC 05X System with 4-pole Bessel Filter
SEC-HS SEC-HS Standard Headstage
SEC-EXT SEC-EXT Headstage for extracellular recordings
SEC-HSD SEC-HSD Headstage with differential input
SEC-HSP SEC-HSP Low-noise Headstage
SEC-MINI-HS Miniature Headstages, several models available, on request
SEC-SLOW VCcCC Modification of SEC System, Surplus
SEC-LIN SEC with Linear Mode, (CC/VC x1, CC/VC x10 modes), Surplus
SEC-LIN-RS SEC with Linear Mode, (CC/VC x1, CC/VC x10 modes) and Series Res. Comp., Surplus
SEC-DHC Dynamic Hybrid Clamp (DHC) Modification of SEC System, Surplus
SEC-GIA SEC Gating Unit for SEC-05
SEC-MOD SEC Cell Model Circuit
SEC-PRS Remote Control f. PENETRATION unit

Last Updated on October 10, 2024

Quote List

No products in the list

Related products

  • BF-48DGX

    Show Details

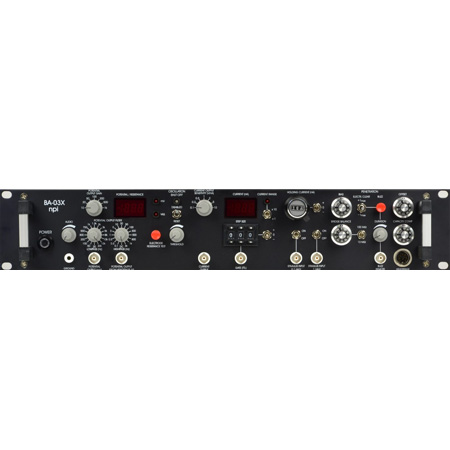

  • Intracellular Bridge Mode and Extracellular Amplifier
