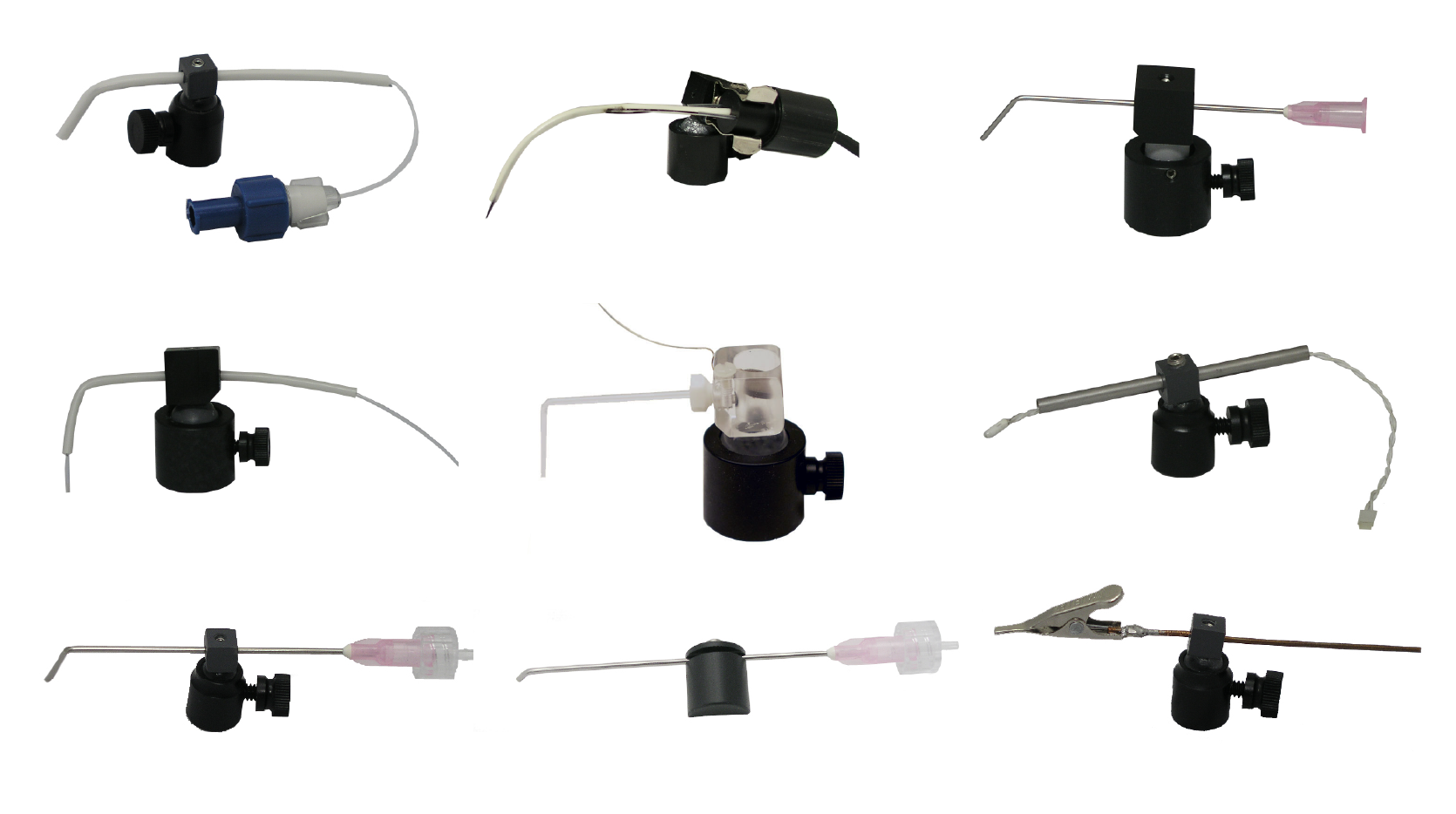

Stage Tool Holders
- Additional information
- UPIOH-S
- LLSHOLD
- TILTPORT
- MCLIP/MMCLIP
- MPSALT-H
- MPIOH/MMPIOH-T
- MPIOH/MMPIOH-S
- MUTOOL/MMUTOOL-H
- Downloads
- Ordering
UPIOH-S
Ultra Low Perfusion Port Magnetic Holder
The UPIOH-S from ALA Scientific is an ultra-low profile perfusion port holder (1/4″ mounting height) with luer lock-fitting stainless steel cannula.
Key features include:
- Locking ball and socket swivel joint with thumb screw
- Powerful magnetic base
Last Updated on May 5, 2025
LLSHOLD
LeveLock Sensor Magnetic Holder
The LLSHOLD from ALA Scientific is a tool holder for the LeveLock TM sensor with a metal clamp which enables control of fluid level and elimination of turbulence.
Key features include:
- Locking ball and socket swivel joint with thumb screw
- Powerful magnetic base
Last Updated on May 5, 2025
TILTPORT
Tilting Magnetic Tool Holder
The TILTPORT from ALA Scientific is a Tilt-a-PortTM perfusion port holder with a height-adjustable bent stainless steel cannula and grounding lug.
Key features include:
- Uni-directional swivel joint with thumb screw
- Powerful magnetic base
Last Updated on May 5, 2025
MCLIP/MMCLIP
Alligator Clip Magnetic Tool Holder
The MCLIP and MMCLIP from ALA Scientific are tool holders with an alligator clip and swivel and extension arm.
Key features include:
- Locking ball and socket swivel joint with thumb screw
- Powerful magnetic base
- High-profile (1″ mounting height) or low-profile (1/2″ mounting height) options
Last Updated on May 5, 2025
MPSALT-H
Agar Bridge Magnetic Holder
The MPSALT-H from ALA Scientific is an agar bridge holder for securely positioning an agar bridge (2.0mm OD glass tubing) to a movable chamber containing an 8mm Ag/AgCl pellet disk.
Key features include:
- Locking ball and socket swivel joint with thumb screw
- Powerful magnetic base
Last Updated on May 5, 2025
MPIOH/MMPIOH-T
Magnetic Perfusion Holder with Teflon Cannula
The MPIOH-T and MMPIOH-T from ALA Scientific are perfusion port holders with luer lock-fitting Teflon cannulas and grounding lugs.
Key features include:
- Locking ball and socket swivel joint with thumb screw
- Powerful magnetic base
- High-profile (1″ mounting height) or low-profile (1/2″ mounting height) options
Last Updated on May 5, 2025
MPIOH/MMPIOH-S
Magnetic Perfusion Holder with Steel Cannula
The MPIOH-S and MMPIOH-S from ALA Scientific are perfusion port holders with luer lock-fitting stainless steel cannulas and grounding lugs.
Key features include:
- Locking ball and socket swivel joint with thumb screw
- Powerful magnetic base
- High-profile (1″ mounting height) or low-profile (1/2″ mounting height) options
Last Updated on May 5, 2025
MUTOOL/MMUTOOL-H
Universal Magnetic Tool Holder
The MUTOOL-H and MMUTOOL-H from ALA Scientific are universal tool holders that accommodate any item that can be mounted on a 2.25 mm ID stainless steel rod. (Thermistor shown not included)
Shown: MUTOOL-H with optional TS-1 thermistor.
Key features include:
- Locking ball and socket swivel joint with thumb screw
- Powerful magnetic base
- High-profile (1″ mounting height) or low-profile (1/2″ mounting height) options
Last Updated on May 5, 2025
Ordering

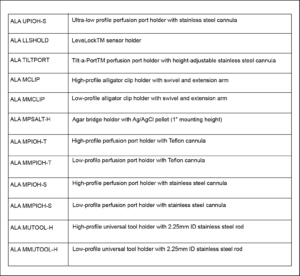

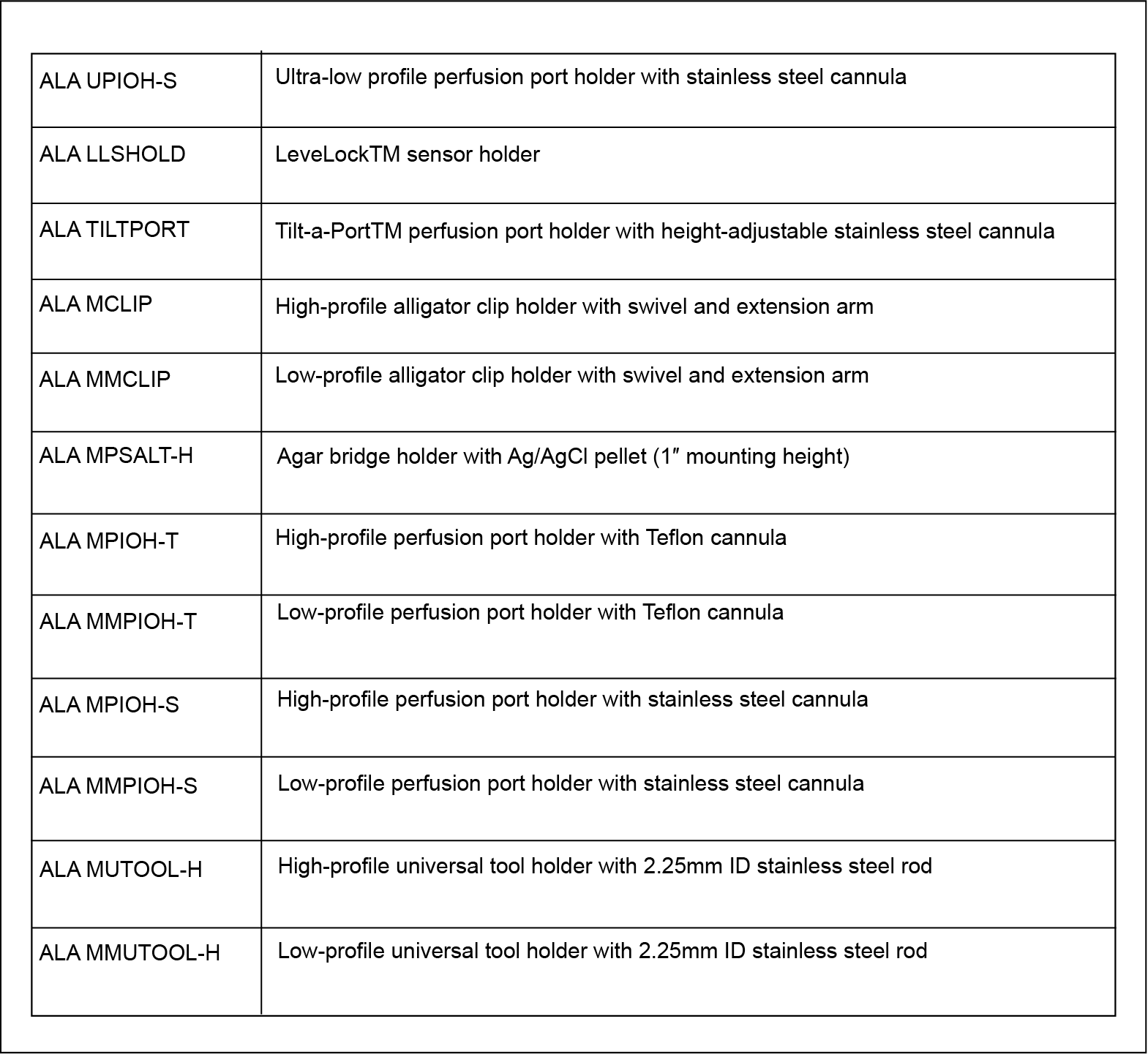

| Part # | Description |
| ALA MS-STAGE | MS chamber & tool holder stainless steel stage for Nikon, Olympus, and Zeiss microscopes, the ALA Microscope Stage Plate, and Narishige and Gibraltar stages |
| ALA MS-STAGE-Z | MS chamber & tool holder stainless steel stage for Zeiss microscopes |
| ALA MS-STAGE-W | MS chamber & tool holder stainless steel stage for Warner Instrument Chamber |
| ALA MS-MAGHD | Magnetic hold down clamps for MS chambers |
| ALA MSS-EXT | Extension plate for holding long tools |
| ALA UPIOH-S | Ultra-low profile perfusion port holder with stainless steel cannula |
| ALA LLSHOLD | LeveLockTM sensor holder |
| ALA TILTPORT | Tilt-a-PortTM perfusion port holder with height-adjustable stainless steel cannula |
| ALA MCLIP | High-profile alligator clip holder with swivel and extension arm |
| ALA MMCLIP | Low-profile alligator clip holder with swivel and extension arm |
| ALA MPSALT-H | Agar bridge holder with Ag/AgCl pellet (1″ mounting height) |
| ALA MPIOH-T | High-profile perfusion port holder with Teflon cannula |
| ALA MMPIOH-T | Low-profile perfusion port holder with Teflon cannula |
| ALA MPIOH-S | High-profile perfusion port holder with stainless steel cannula |
| ALA MMPIOH-S | Low-profile perfusion port holder with stainless steel cannula |
| ALA MUTOOL-H | High-profile universal tool holder with 2.25mm ID stainless steel rod |
| ALA MMUTOOL-H | Low-profile universal tool holder with 2.25mm ID stainless steel rod |
Last Updated on May 5, 2025
