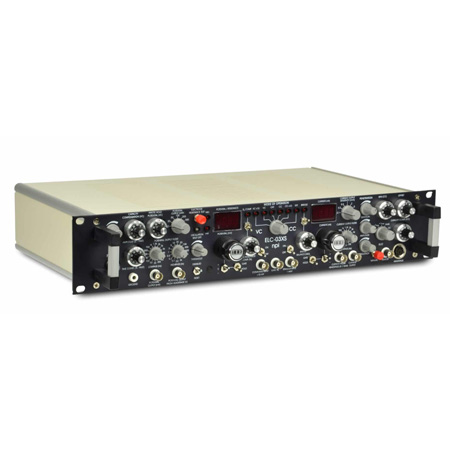

Universal Amplifier

ELC-03XS

Add to quote list
This product is already in quote request list
Browse the list
Category: Multi Technique Amplifiers
  • Overview
  • Features
  • Specifications
  • References
  • Downloads
  • Ordering

Overview

ELC amplifiers are multi technique systems where researchers can combine traditional patch and microelectrode recording with electrical stimulation, dye application or single cell transfection. All ELC amplifiers enable an investigator to identify a single cell by its characteristic spike train and then electroporate or stimulate this cell in situ. Using the loosepatch clamp technique for recording and stimulation in slice or in in vivo preparations, allow investigations under more natural, i.e. non-invasive conditions. Experiments can be executed with minimal damage to individual cells including subcellular structures such as dendrites and axons. Since no gigaseal is required for these types of experiments, the same pipette can even be used for several cells. The ELC incorporates a unique headstage with a resistive-feedback circuit capable of functioning as follows:

  1. Patch Clamp headstage with pA sensitivity
  2. High-impedance electrometer with bridge balance capable of functioning as a conventional bridge amplifier
  3. Extracellular amplifier with highpass and lowpass filters and gain up to 1000

ELC amplifiers come in 2 versions:

  • ELC-01X and the ELC-01MX (modular version) include a simple voltage clamp function for approaching a cell and forming a seal.
  • ELC-03XS is a complete patch clamp amplifier for whole-cell and perforated patch with improved series resistance compensation based on abridge balance circuit.

Therefore, ELC-03XS amplifiers offer an unprecedented combination of capabilities with only one headstage compared to other commercial amplifiers with a more limited functional design. Researchers will find this amplifier an excellent and very cost effective solution for carrying out multiple recording techniques while using several stimulation protocols.

  • Get one amplifier for multiple uses
  • Recording, staining, electroporation – no need to change pipette or headstage
  • Only amplifier on the market with this multifunctional use
  • Record in the low pA range and have headroom for up to 1.2 µA
  • A simpler version of this amplifier is the ELC-01X
  • Similar amplifier without voltage clamp is the BA-03X
  • A software controlled version of this amplifier is the UniClamp USB
  • Combine with our miniature headstages to recording in freely moving animals
  • Book a demo of the ELC-03XS

Last Updated on October 10, 2024

Features

  • Recording with patch, sharp, metal or carbon fiber electrodes
  • In vivo recordings with miniature headstages
  • Extracellular recordings with high gain
  • Headstages with additional extracellular channels
  • Juxtasomal filling of dyes or DNA
  • Intracellular recording in CC (bridge) mode with patch or sharp electrodes
  • Intracellular recording in VC mode with patch electrodes
  • Single cell stimulation
  • Amperometry, voltammetry and iontophoresis
  • Improved series resistance compensation
  • Telegraph lines for filters and gains
  • Reliable recording from astrocytes
  • Compatible to all major data acquisition systems
  • Combined in vivo whole-cell patch-clamp recordings with extracellular multielectrode recordings with the NEURALYNX system

Last Updated on October 10, 2024

Specifications

HEADSTAGE Input voltage range:
±1000 mV, other ranges possible
Operating voltage:
±15 V
Enclosure:
Size: 23 x 70 x 26 mm, grounded
Mounting plate:
Size: 68 mm x 54 mm
On request:
Holding bar:
length 150 mm, O.D. 8 mm
Electrode connector:
BNC with driven shield
Ground connector:
2.4 mm connector
Input resistance:
>1013 Ω (internally adjustable)
Current range:
±12 nA into 100 MΩ, other ranges possible
ELECTRODE PARAMETER CONTROLS OFFSET:
range ±100 mV, ten-turn control (ELC-03XS)
range ±200 mV, ten-turn control (ELC-01X)
CAPACITY COMPENSATION:
range 0 – 30 pF, ten-turn control
BIAS (internal adjustment):
range ±100 pA, current adjustable with trim potentiometer (ELC-03XS)
range ±100 pA, current adjustable with ten-turn control (ELC-01X)BRIDGE BALANCE:
0-100 MΩ (0-1000 MΩ possible);
djustable with ten-turn control
ELECTRODE RESISTANCE TEST Sensitivity 100 mV / MΩ application of square current pulses ±1 nA (ELC-03XS)
Sensitivity 1 mV / MΩ application of square current pulses ±1 nA (ELC-01X)
Display:
3 1/2 digit, XXX MΩ, activated by push-button (same as POTENTIAL display) (ELC-03XS)
3 ½ digit, XXX MΩ, activated by key switch (same as POTENTIAL display) (ELC-01X)
BANDWIDTH AND SPEED RESPONSE Full power bandwidth (REL = 0):
>30 kHz, rise time (10% – 90%)
<10 µs (REL = 100 MΩ)
<5 µs (REL = 5 MΩ)
OUTPUTS Output impedance:
50 Ω
Max. voltage:
±12 V
Current output:
BNC connector, sensitivity 0.1…10 V/nA,
Current output sensitivity:
Rotary switch, 0.1, 0.2, 0.5, 1, 2, 5, 10 V/nA
Current display:
3 1/2 digits, XX.XX nA, resolution 10 pA (ELC-03XS)
3 ½ digits, XXX.X nA, resolution 100 pA (ELC-01X)
Current LP filter:
4-pole BESSEL filter (other options available) corner frequencies (Hz):
20, 50, 100, 200, 300, 500, 700, 1k, 1,3k, 2k, 3k, 5k, 8k, 10k, 13k, 20k (ELC-03XS)
1-pole, corner frequency 5 kHz (other options available) (ELC-01X)
attenuation:
-24 dB/octave,
Potential output x1:
BNC connector, sensitivity 1 V/V
Potential output:
BNC connector, sensitivity 10…1k V/V
Potential output gain:
Rotary switch, 10, 20, 50, 100, 200, 500, 1k
Potential Output Resolution in AC:
50µV (ELC-01X)
Potential LP filter:
4-pole BESSEL filter (other options available)
attenuation:
-24 dB/octave,
corner frequencies (Hz):
20, 50, 100, 200, 300, 500, 700, 1k, 1,3k, 2k, 3k, 5k, 8k, 10k, 13k, 20k
Potential HP filter:
1-pole BESSEL filter (other options available)
attenuation:
-6 dB/octave,
corner frequencies (Hz):
DC, 0.1, 0.3, 0.5, 1, 3, 5, 10, 30, 50, 100, 300, 500, 800, 1k, 3k (ELC-03XS)
DC, 300, 400, 600 (ELC-01X)
Telegraph potential LP filter:
-8…+7 V, 1V/step
Telegraph potential HP filter:
-8…+7 V, 1V/step
Telegraph current filter:
-8…+7 V, 1V/step (ELC-03XS)
Telegraph potential output sensitivity:
+1…+7 V, 1 V/step
Telegraph current output sensitivity:
+1…+7 V, 1 V/step
DIGITAL DISPLAYS Display mV/MΩ:
3 1/2 digits, XXXX mV or XXX MΩ (ELC-03XS)
3 ½ digits, XXXX mV or XXX.X MΩ (ELC-01X)
Display current:
3 1/2 digits, XX.XX nA (ELC-03XS)
3 ½ digits, XXX.X nA (ELC-01X)
INPUTS Input impedance analog:
100 kΩ
Input range:
±12 V
Input impedance digital (TTL):
10 kΩ
Input range TTL:
0-5 VCurrent stimulus input CC:
via BNC connectors, sensitivity 1 nA / V (ELC-03XS)
via BNC connectors, sensitivity 10 nA / V (ELC-01X)
Current stimulus input CCx10:
via BNC connectors, sensitivity 10 nA / V (ELC-03XS)
Step gate input:
via BNC connector (TTL)
Gated stimulus CC:
with ten-turn control of holding current, resolution: 10 pA, range: ±10 nA (ELC-03XS)
with ten-turn control of holding current, resolution: 100 pA, range: ±100 nA
Gated stimulus CCx10:
with ten-turn control of holding current, resolution: 100 pA, range: ±100 nA (ELC-03XS)
Polarity:
selectable with toggle switchVoltage command input VC:
via BNC connectors, sensitivity: /10 mV
Voltage command input VCx10:
via BNC connectors, sensitivity: /1 mV
Step gate input:
via BNC connector (TTL)
Gated stimulus VC: with ten-turn control of holding potential, resolution: 1 mV, range: ±1 V
Gated stimulus VCx10:
with ten-turn control of holding potential, resolution: 10 mV, range: ±10 V (ELC-03XS)
Polarity :
selectable with toggle switch
POWER REQUIREMENTS 115/230 V AC, 60/50 Hz, fuse 0.4/0.2 A, slow, 25 W
DIMENSIONS 19″ rackmount cabinet
19″ (483 mm), 10″ (250 mm), 3.5″ (88 mm)
4.5 kg (ELC-03XS)
4.0 kg (ELC-01X)

Last Updated on October 10, 2024

References

α-asarone induces cardiac defects and QT prolongation through mitochondrial apoptosis pathway in zebrafish

Involvement of peroxisome proliferator-activated receptor γ in anticonvulsant activity of α-asaronol against pentylenetetrazole-induced seizures in zebrafish

Operant conditioning paradigm for juxtacellular recordings in functionally identified cortical neurons during motor execution in head-fixed rats

Last Updated on October 10, 2024

Downloads

Manuals ELC-03XS_manual

Intracellular amplifier

Brochure ELC-Series

Last Updated on October 10, 2024

Ordering

Part No. Description
ELC-03XS Universal Amplifier
ELC-DUAL Two ELC-03XS Universal Amplifiers for Double Cell Recordings
ELC-01X Amplifier for extracellular recording and electroporation
ELC-01MX ELC-01 Module for EPMS System
ELC-MOD Cell Model Circuit for ELC System (passive)
ELC-MODD Dual-Cell Model Circuit for ELC System (passive)
ELC-SEAL Surplus for Seal Resistance Test
ELC-PRS Remote Switch for Penetration Unit
ELC-HS ELC Headstage
ELC-SWI Surplus for switchable Headstage, x1/x100
ELC-SWI-M Surplus for switchable Headstage for ELC-01MX, x1/x100
ELC-MINI-HS Miniature Headstages, several models available, on request

Last Updated on October 10, 2024
