Overview

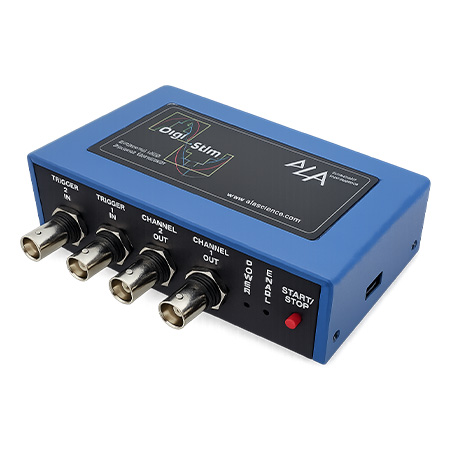

The DigiStim-2 is a USB based portable arbitrary waveform generator/stimulator. It is useful for a variety of applications, e.g. student lab, control signals for isolated stimulators, controlling external devices, etc.
- 2 channel portable stimulator with trigger in function
- USB programmable
- Built-in signals: Sine, Square, Triangle, Sawtooth and Reverse Sawtooth
- Arbitrary waveform generator
- 11 bits of resolution
- DC to 50kHz in dual channel, DC to 100kHz in single channel
- Hand held
- Low cost – perfect for student labs
- GUI included – Windows 7/10 compatible
Last Updated on December 2, 2024
Details
It is an 11 bit device and has trigger in functions for each channel. Generation of sine, square, triangle, saw tooth and reverse saw tooth waveforms is built-in as well as arbitrary signal generation.
The DIgiStim-2 operates from DC to 50kHz in dual channel or from DC to 100kHz in single channel mode.
The DigiStim software is compatible with Windows 7 and Windows 10.
The DigiStim software data format is “.CSV” (comma separated values). Its format is compatible with the CSV file produced by Tektronix digital storage scopes. Users can edit or set up the required CSV waveform and use Microsoft Excel to open and edit the CSV wave files.
Last Updated on December 2, 2024
Specifications
| Waveform Generator |
|
| Channels |
2 |
| Frequency Range |
DC – 50 kHz in dual Channel mode
DC – 100 kHz in single channel mode |
| Sample Rate |
4M Hz in single mode / 1.3 M Hz Dual mode |
| Vertical Resolution |
11 bits |
| Waveform Length |
32k points per channel |
| Amplitude |
-5V to + 5V |
| Output Connector |
BNC Female |
| Standard Waveforms |
Sine, Square, Sawtooth, and Reverse Sawtooth |
| Arbitrary Waveforms |
CSV format |
| Resolution |
0.1, 0.2, 0.3Hz,… 1Hz, 2Hz, 3Hz…. In whole numbers |
| PC Communication Interface |
|
| Control Interfaces |
USB 2.0 |
| Communication Protocol |
HID class |
| PC Operating System |
Windows 7, Windows 10 64 bit |
|
|
| Power and Environment |
|
| Power Supply Voltage |
5V DC |
| Power Consumption |
50 mW |
| Enclosure Dimensions (L x W x H) |
11.25 x 3.35 x 7.32 cm (4.43 x 2.88 x 1.32 in) |
| Net Weight |
205 g (0.45 lbs) |
|
|
|
|
|
|
|
|
|
|
Last Updated on December 2, 2024
Ordering
DigiStim: 2 channel USB based multifunction waveform generator
