Feature
- Fiber based optogenetics with powerful laser source
- Easy integration into your system due to versatile control options
- Connect standard fibers – LDU available with SMA and FC/PC port
Last Updated on January 20, 2022

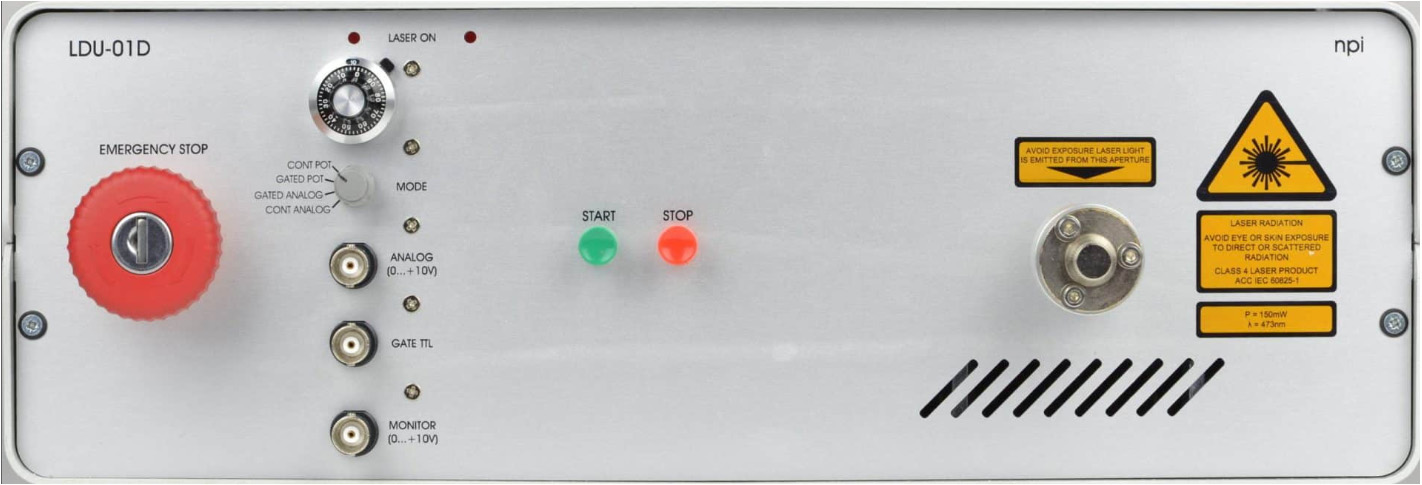

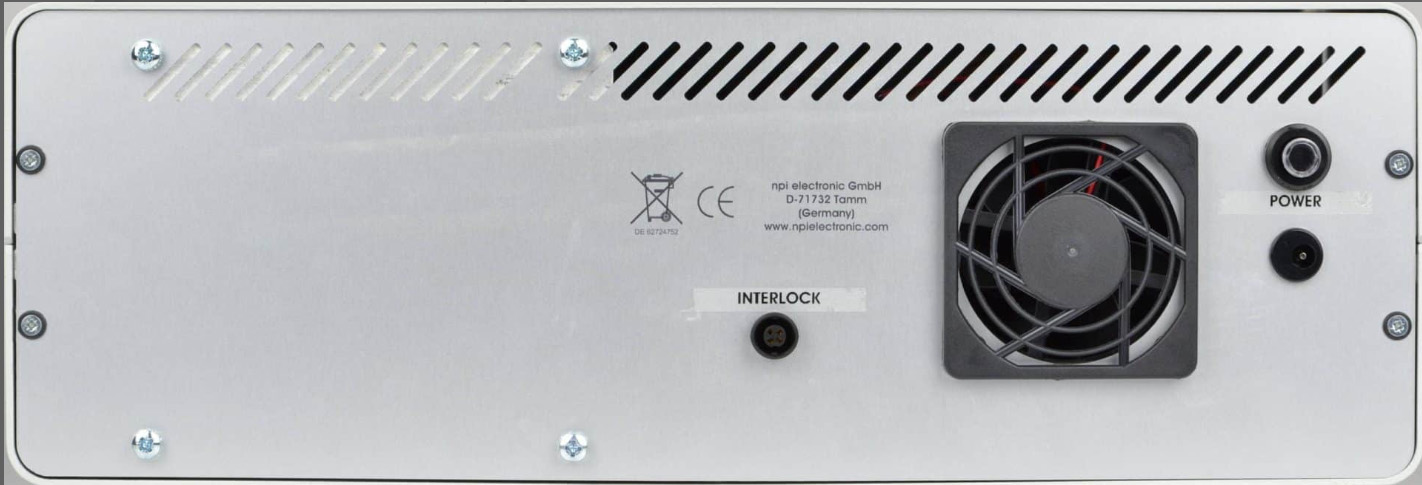

Laser Drive Unit
LDU-01D
Specifications
As an example for the 473 nm version:
| Wavelength | 473 nm |
| Laser output power | 200 mW |
| Analog input | 0…10 V, BNC connector |
| TTL input | 0…5 V, BNC connector |
| Monitor output | 0…10 V, BNC connector |
| Dimensions | (W x D x H) 365 mm x 260 mm x 130 mm |
| Input power | 12 V, 10 A |
Last Updated on January 20, 2022
Ordering
The LDU-01D is available with different laser modules. Each LDU-01D can house one laser module. A complete system consists of the LDU-01D + LDU-L-XXX (with XXX as wavelength in nm).
| Part number | Description |
| LDU-01D | Laser Driver Unit: Desktop housing for solid state laser; Control via TTL, analog input or manually (10-turn potentiometer); Solid state laser needs to be ordered separately |
| LDU-L-360 | Solid state laser module for LDU-01D; Wavelenght: 360 nm; Power output at fiber end > 70 mW |
| LDU-L-473 | Solid state laser module for LDU-01D; Wavelenght: 473 nm; Power output at fiber end > 100 mW |
| LDU-L-589 | Solid state laser module for LDU-01D; Wavelenght: 589 nm; Power output at fiber end > 100 mW |
